Here are some key details about this module:

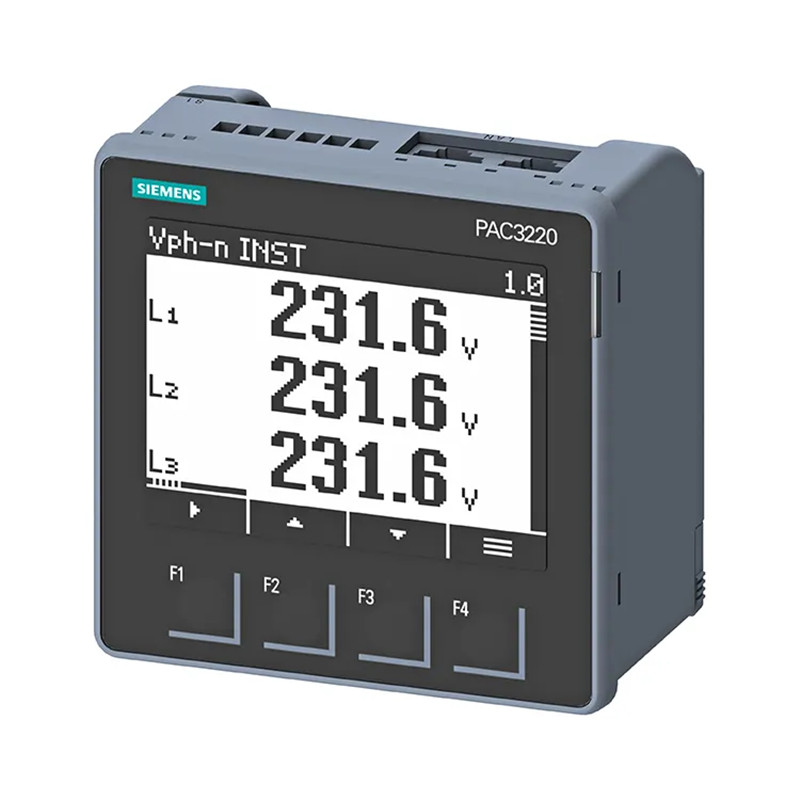

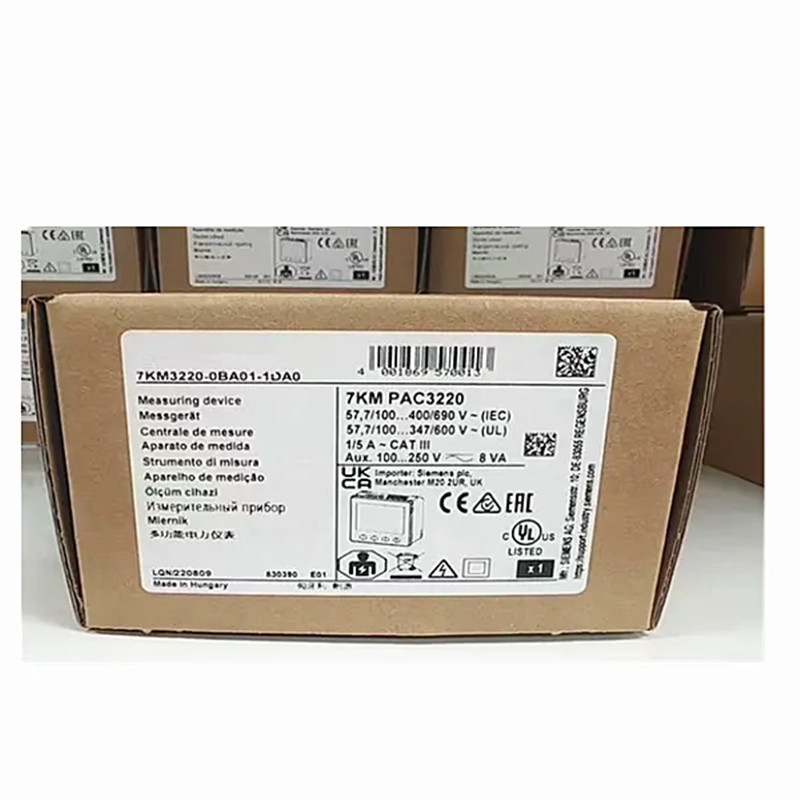

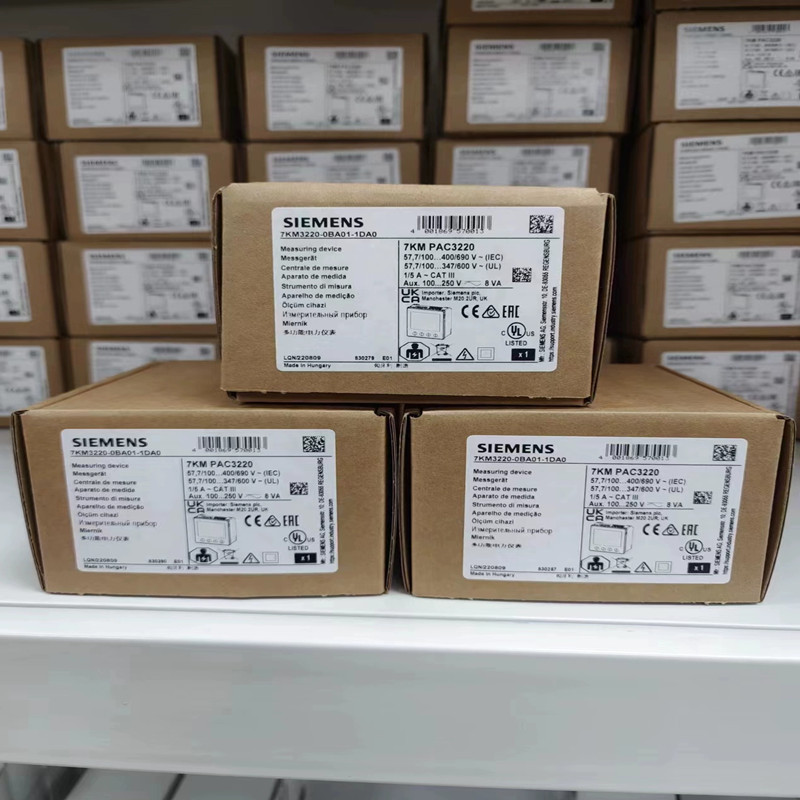

Energy Measurement: The 7KM3220-0BA01-1DA0 module is used for precise energy measurement and monitoring in electrical systems. It enables the measurement of parameters such as active and reactive power, voltage, current, energy consumption, power factor, and frequency. This module is typically used for comprehensive energy management and billing purposes.

Power Quality Monitoring: In addition to energy measurement, the module also provides power quality monitoring functionality. It can capture and analyze parameters like harmonics, voltage dips and swells, flicker, and interruptions. This allows for the evaluation of the power quality in the electrical network, enabling troubleshooting and preventive maintenance.

Communication Interfaces: The 7KM3220-0BA01-1DA0 module features multiple communication interfaces for data retrieval and integration into larger systems. It supports various protocols such as Modbus RTU, Modbus TCP/IP, and PROFIBUS DP, allowing connectivity with compatible devices and SCADA systems.

Integration with Monitoring Systems: This module can be integrated into energy monitoring and management systems, enabling centralized monitoring, data analysis, and reporting. It helps in optimizing energy consumption, identifying potential issues or inefficiencies, and ensuring compliance with energy regulations.

Configuration and Programming: The module is typically configured and programmed using Siemens engineering software tools such as SIMATIC WinCC or Totally Integrated Automation (TIA) Portal. These tools provide a user-friendly interface for parameterization, setting up communication parameters, and defining measurement and monitoring functionalities.
